Daechle Disc UL

A lightweight in its strength class.

  • MSRP € from € 34
  • Weight per item from 70 g
details

Product details

With our Dächle Disc UL you save watts on the climb to burn them on the descent. With its smart features and bold design you will stand out from the crowd. It is as ultra-light as possible, but as strong as necessary and thus a sophisticated balance of high performance and low weight. The slim spokes and the UL hole pattern save material and prevent glazing of the brake pads. At the same time the appropriate disc thickness of 1.85-2.05mm, depending on the disc diameter, provides the ability to optimally absorb and dissipate the arising braking heat. Thus, fading stability is ensured. A victory in every respect.

  • Brake interface Disc IS (6-bolt)
  • Disc diameter [mm] 140, 160, 180, 203
  • Brake disc thickness [mm] 1.85, 2.05
  • Friction ring width [mm] 13.75, 14.25
  • Material Stainless Steel Hardened

dächle disc ul

A lightweight in its strength class.

models

Model finder

Just a few clicks to find your model. Please use the filter below.

01

Disc diameter [mm]

There are 4 models of this product.
Show all
Hide all
Zoom image

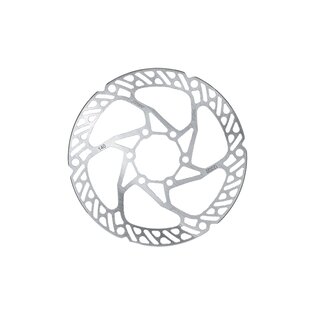

BRAKEDISC UL DIA 140 1.85 IS STEEL ASM

BRDSU14IN0000S
General
  • Brake interface Disc IS (6-bolt)
  • Net weight 70 g
Brake Disc
  • Disc diameter [mm] 140
  • Brake disc thickness [mm] 1.85
  • Friction ring width [mm] 13.75
  • Material Stainless Steel Hardened
Zoom image

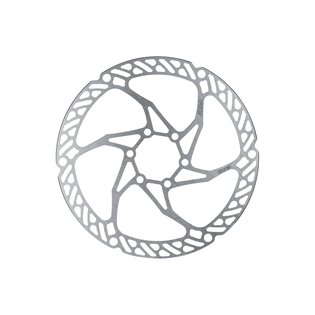

BRAKEDISC UL DIA 160 1.85 IS STEEL ASM

BRDSU16IN0000S

  • Brake interface Disc IS (6-bolt)
  • Net weight 87 g

  • Disc diameter [mm] 160
  • Brake disc thickness [mm] 1.85
  • Friction ring width [mm] 13.75
  • Material Stainless Steel Hardened
Zoom image

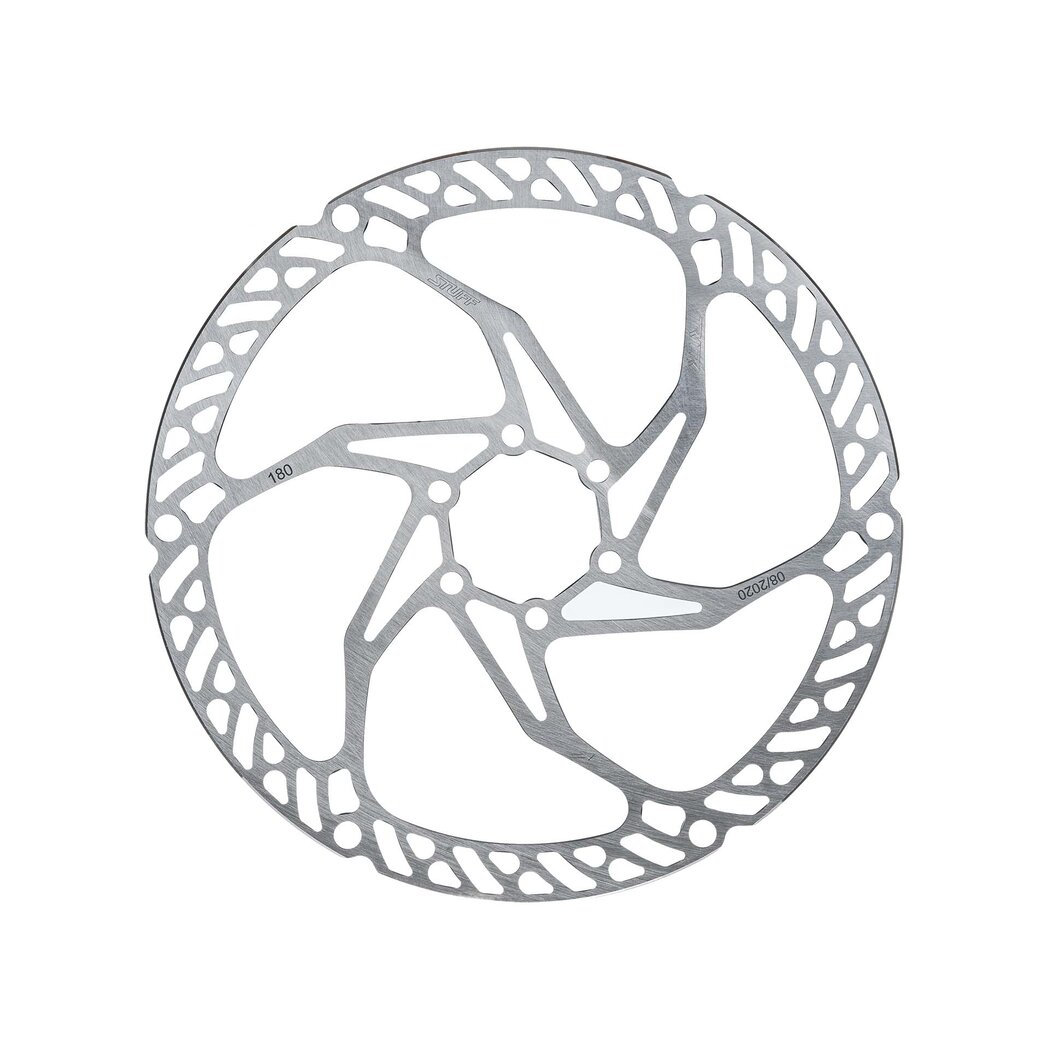

BRAKEDISC UL DIA 180 2.05 IS STEEL ASM

BRDSV18IN0000S

  • Brake interface Disc IS (6-bolt)
  • Net weight 120 g

  • Disc diameter [mm] 180
  • Brake disc thickness [mm] 2.05
  • Friction ring width [mm] 13.75
  • Material Stainless Steel Hardened
Zoom image

BRAKEDISC UL DIA 203 2.05 IS STEEL ASM

BKDSV20IN0000S

  • Brake interface Disc IS (6-bolt)
  • Net weight 150 g

  • Disc diameter [mm] 203
  • Brake disc thickness [mm] 2.05
  • Friction ring width [mm] 14.25
  • Material Stainless Steel Hardened
